Inspection based on Computed Tomography

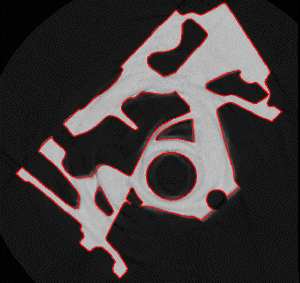

Contour extraction in CT image
Industrial parts can be dimensionally measured using computed tomography (CT). In contrary to tactile and optical measuring devices, even complex parts with inner structures can be digitized completely. Computed tomography provides new opportunities to perform industrial inspection tasks, requiring new, powerful methods.

The software module CT-Inspection offers the possibility to analyze and compare CT image and voxel data to a nominal model (CAD model). Alternatively, a surface model can be reconstructed from the measuring data.

Download:
Module Description (PDF, 680 KB)
Demonstration Video "Inspection" (ZIP, 4.0 MB)
Demonstration Video "Blowhole Detection" (ZIP, 848 KB)
